Wemos D1 Mini

Wemos D1 Mini

$6.00 USD
$6.00 USD
Sale Sold out
Shipping calculated at checkout.

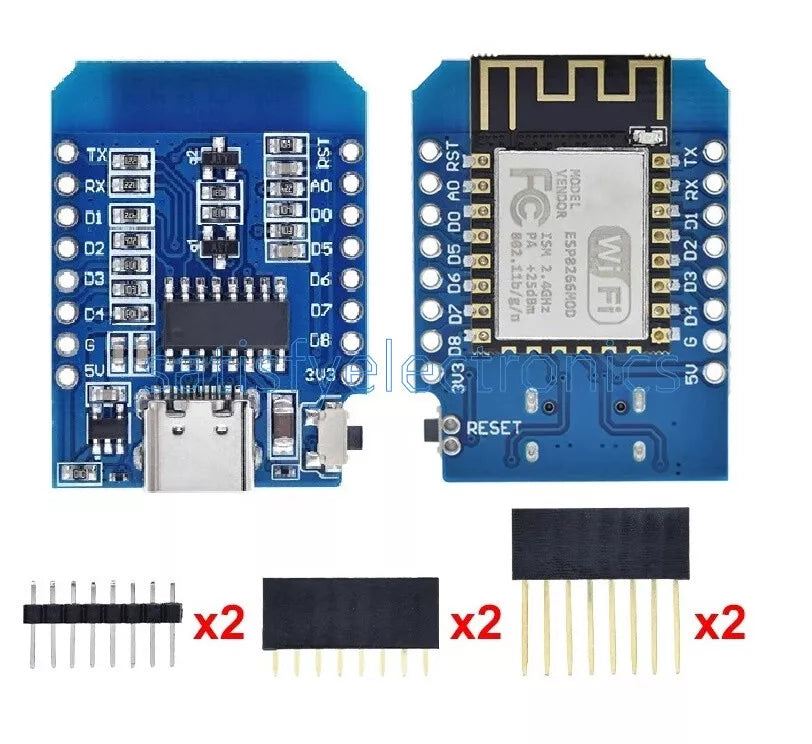

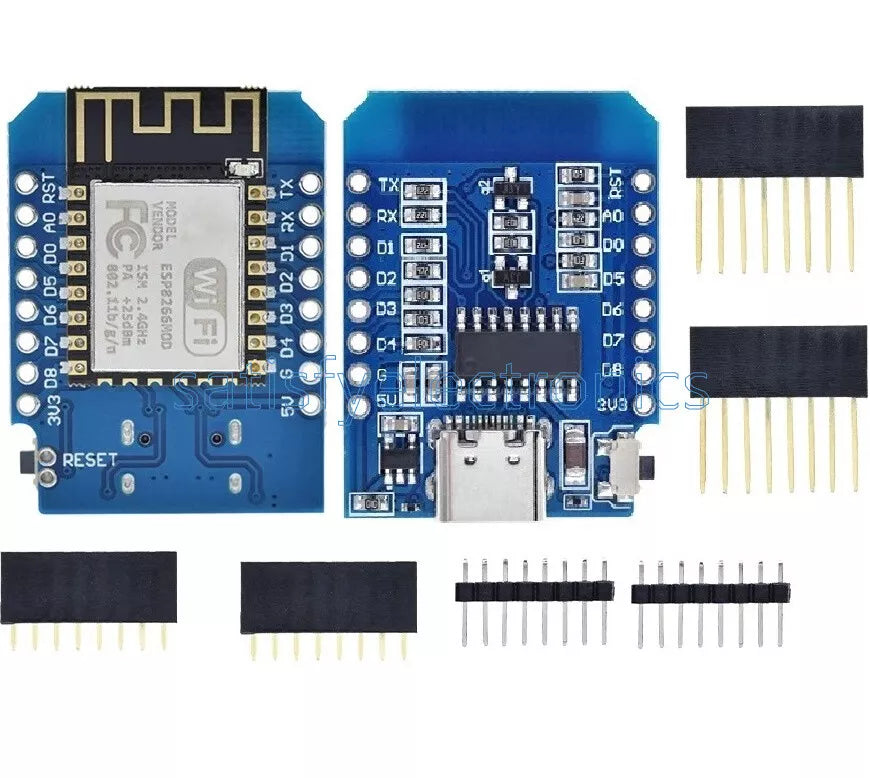

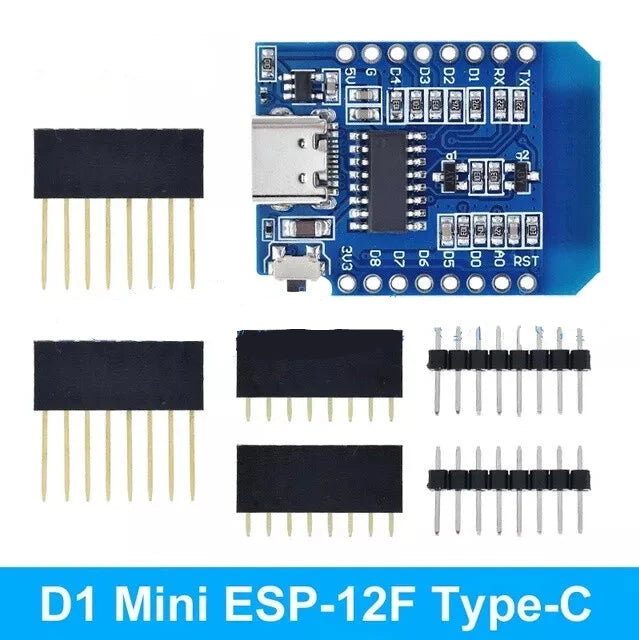

Packge Included

  • 1 x ESP8266 WeMos D1 Mini
  • 2x Pin header (short)
  • 2x Female connector strip (short)
  • 2x Female connector strip (long)

Specifications

Operating Voltage 3.3 V
Digital I/O Pins 11
Analog Input Pins 1 (3.2 V max)
Clock Speed 80/160 MHz
Flash 16 MB
Size 34.2 x 25.6 mm
Weight 3 g


Pin Configuration

Pin Function ESP8266 Pin
RX RXD RXD
A0 Analog input, max 3.2 V A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5 V -
3V3 3.3 V 3.3 V
RST Reset RST
